Environment Protection System
Environment Protection System

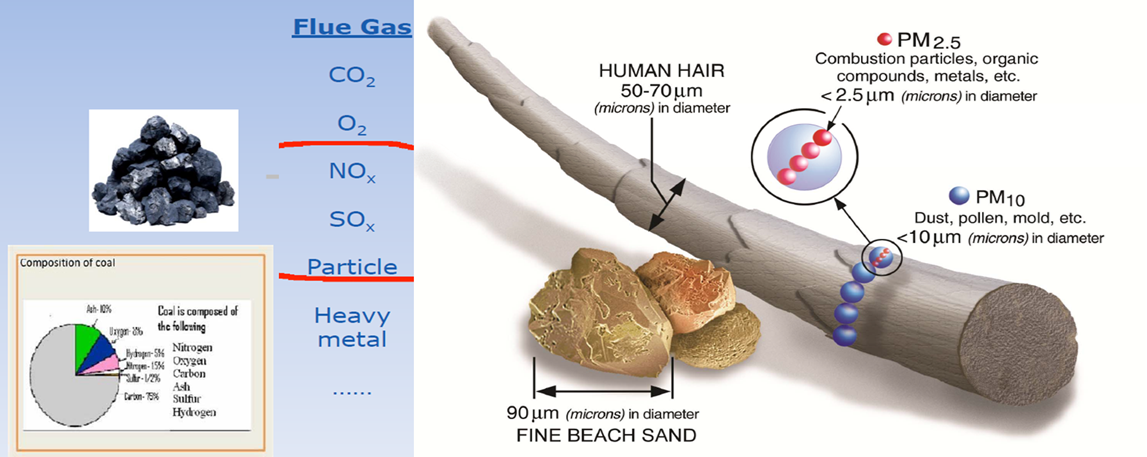

- Pollutant

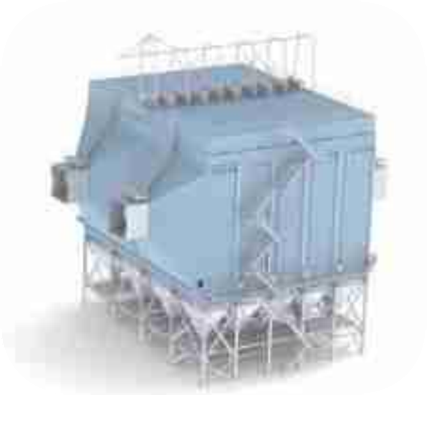

- ESP (Electro Static Precipitator)
- An electrostatic precipitator (ESP) adalah perangkat tanpa filter yang menghilangkan partikel halus, seperti debu dan asap, dari gas yang mengalir menggunakan gaya muatan elektrostatik terinduksi yang menghambat aliran gas melalui unit secara minimal.
- Berbeda dengan wet scrubber yang menerapkan energi langsung ke medium fluida yang mengalir, ESP hanya menerapkan energi ke partikel yang dikumpulkan dan oleh karena itu sangat efisien dalam konsumsi energinya (dalam bentuk listrik).
- Problem Identification
- Collecting Electrode (Bend, ripped, misalignment, off from the spacer)
- Discharge Electrodes (wire loose, separated, Bended, misalignment)
- Bearing shaft rapper system already worn out and Broken

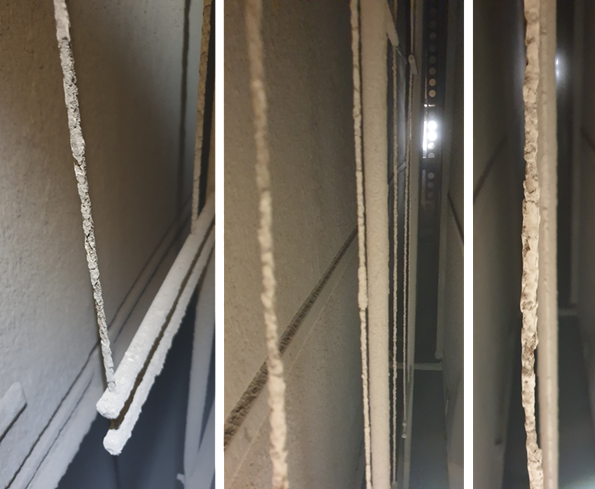

- Ash deposit in Discharge Electrodes
- Ash Deposit in Collecting Electrodes
- Gas Distribution System is not equal among layers
- Internal bolt and nut has loosen, and rusted
- Broken Heater hopper
- Error in Controller and lake of calibration

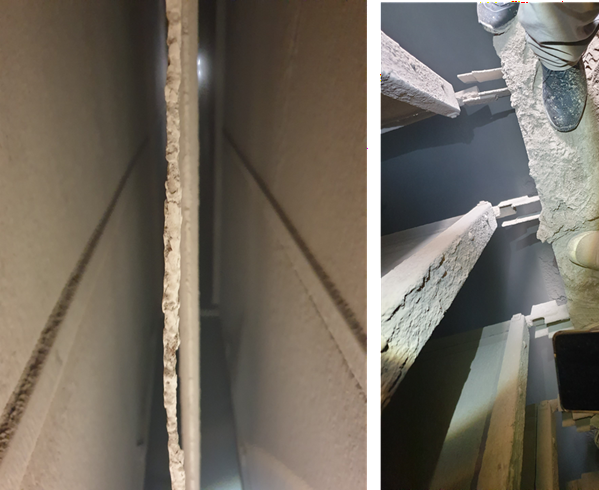

- Collecting Electrode
- Bend, ripped, misalignment, off from the spacer in certain area due to rust and operation

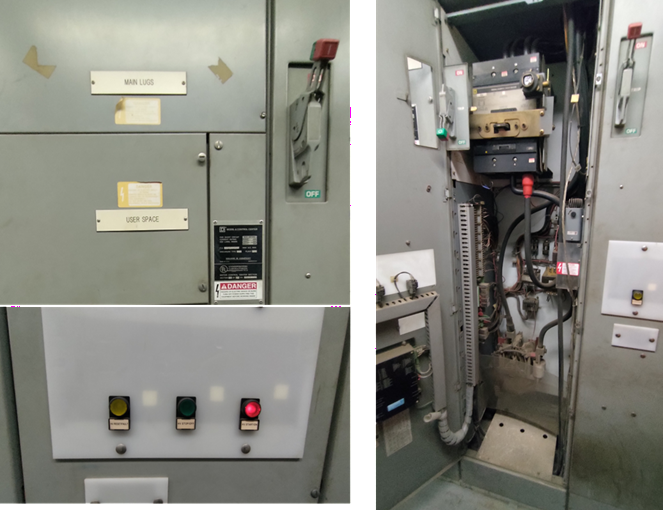

- Controller
- Error in Controller and lake of calibration
- Controller is an obsolete type, difficult in operation and spare part
- Lake of calibration

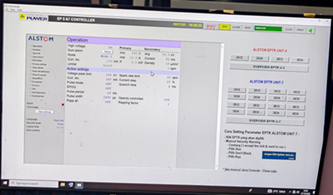

- Partially upgrade monitoring system
- Difficult to Control
ESP Upgrade
ESP Upgrade

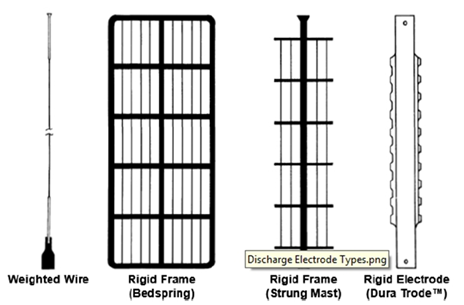

Discharge Electrode Upgrade
- The existing discharge electrode (DE) configuration
- Spiral type emitting wire
- 2 layer of DE rigid frame (upper frame & lower frame)

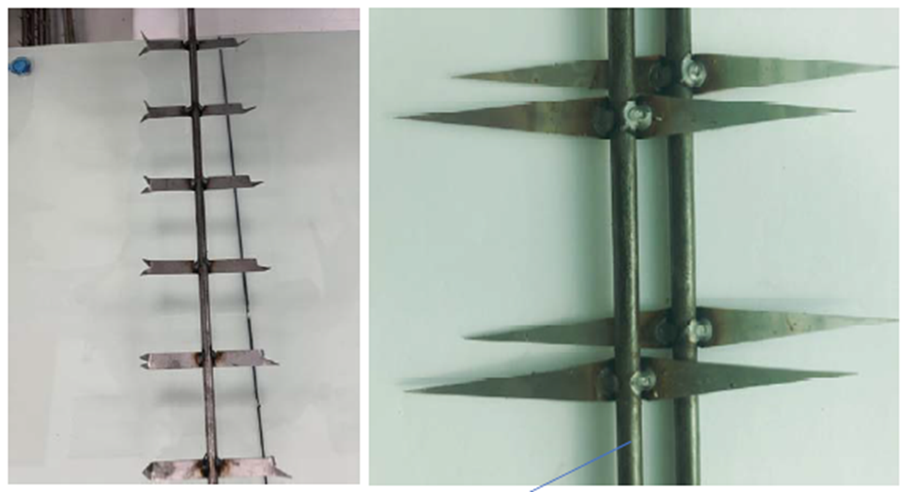

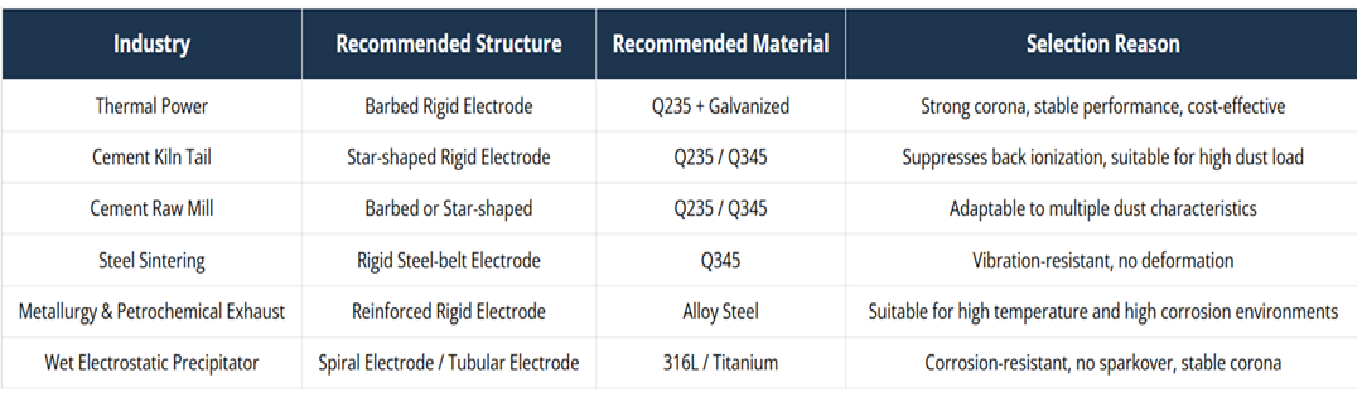

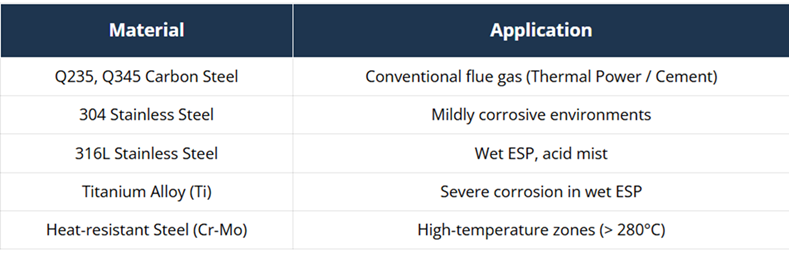

Upgrade Emitting Wire

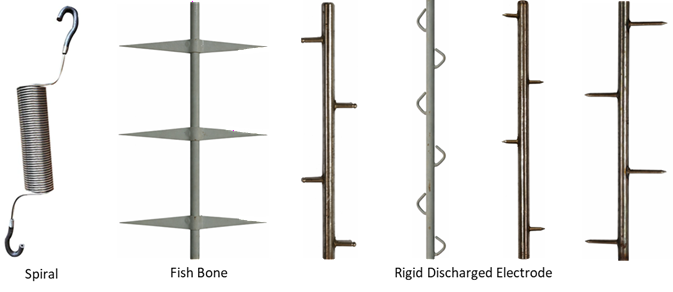

Discharged Electrode (Emitting Wire)
